SAE J1772 Portable EV Quick Charger 10A 13A 16A 20A Home Electric Vehicle Charging Station type 1 for ford for nissan
 |
| SAE J1772 Portable EV Quick Charger 10A 13A 16A 20A Home Electric Vehicle Charging Station type 1 for ford for nissan |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -21% |
| Product id | 32999445971 |
| Vendor | JustLoveCar Store |
| Category | Automobiles & Motorcycles - ATV,RV,Boat & Other Vehicle |
Description :

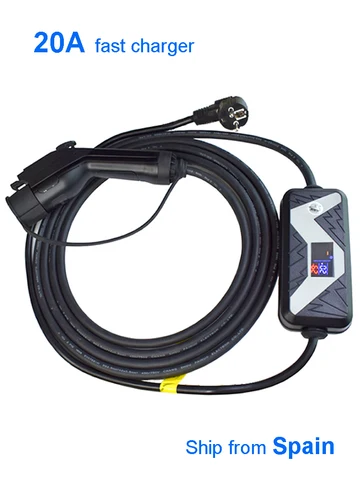

Choose shipping from Spain or Russia, enjoy fast delivery, no fees!
Quality and safty in first place.
CE, Rohs, TUV, IEC62196, EMC, Reach, to ensure high quality!

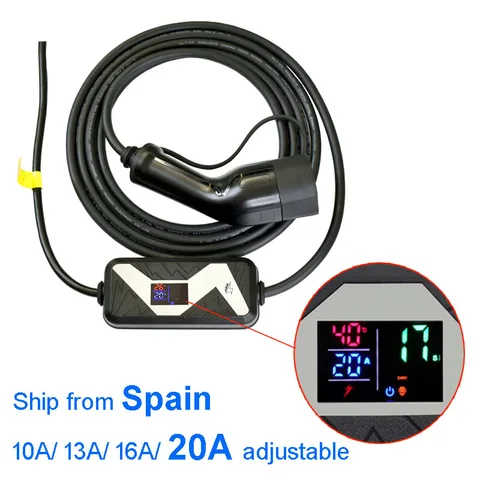

Portable EV Charger Information:

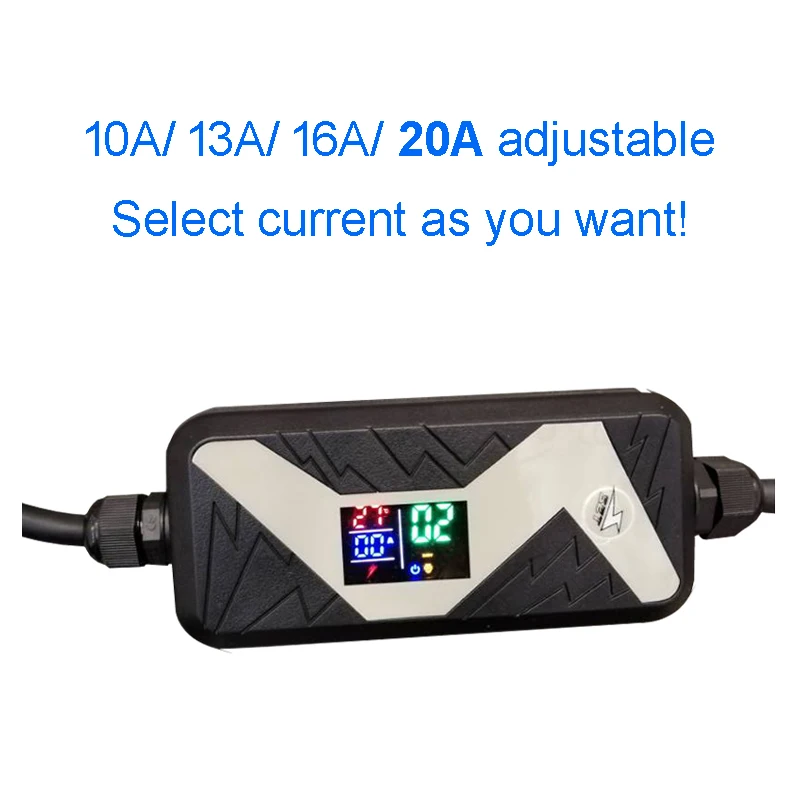

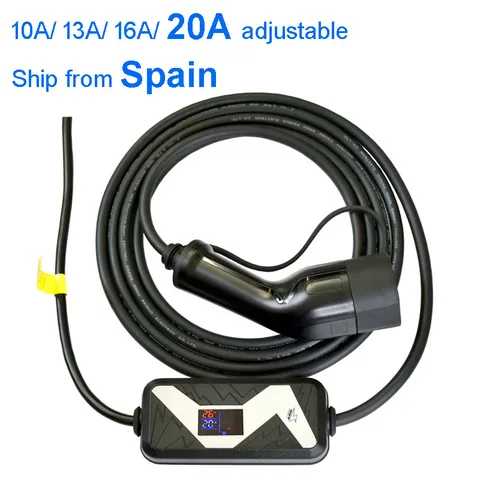

1, Current: 10A/13A/16A/20A current adjustable. Default is 16A. Max is 20A
2, Voltage: AC 85-265V
(Warm tip: Our charger support 20A. But also require your car can support 20A charging, and also require power supply from the AC socket can reach 20A !)

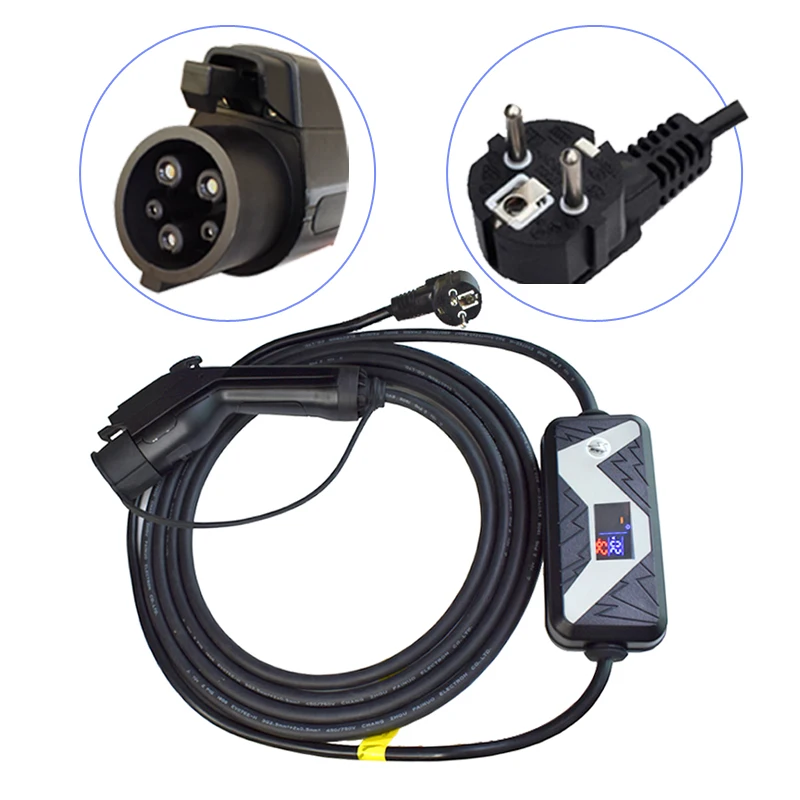

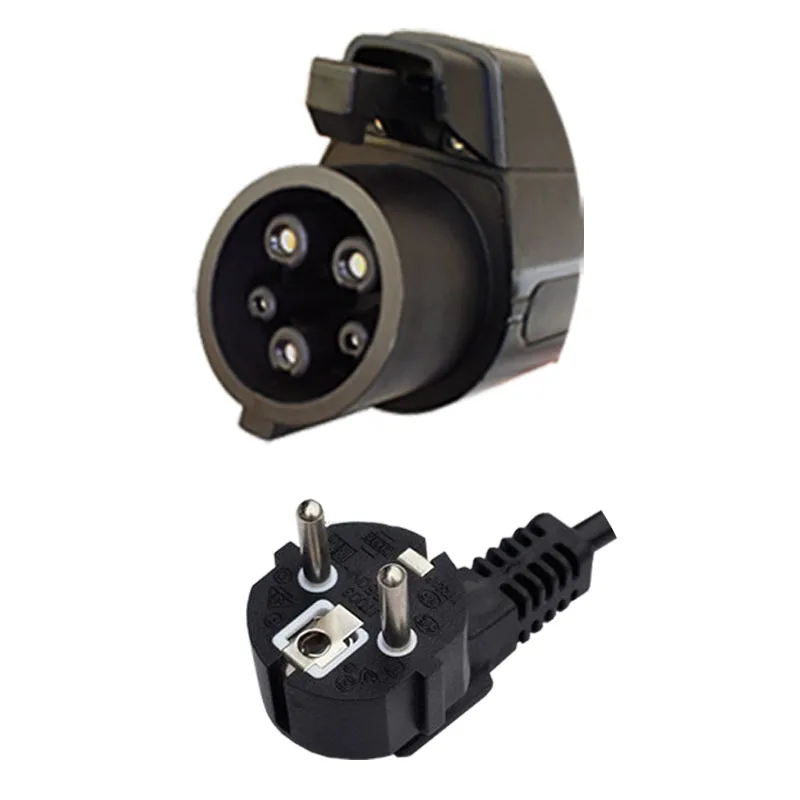

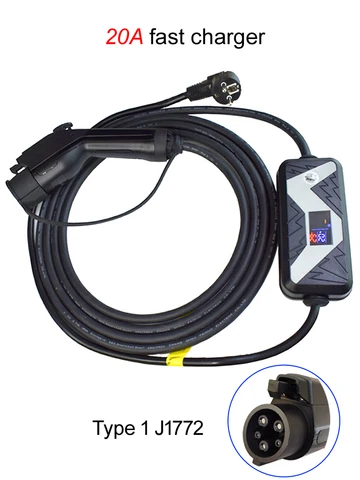

3, Charger Options: Type 1(SAE J1772)
4, Length Options: 5 meters .
5, Plug Options: EU plug

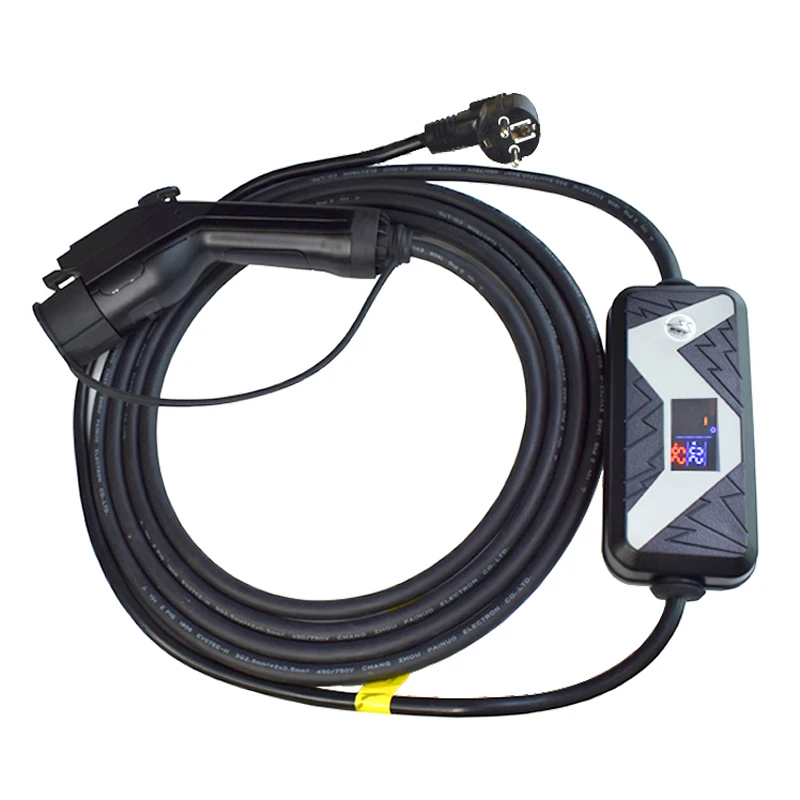

This listing is 5.6 meters type1.

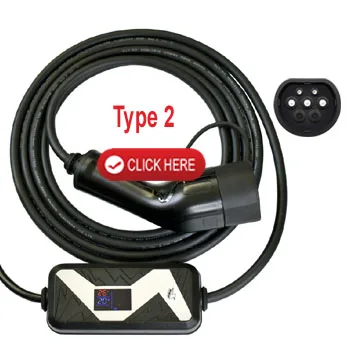

If need 7.6 meters click below picture. If need type 2 click second picture.
EVSE Charger Descriptions:
Colorful Led Control box

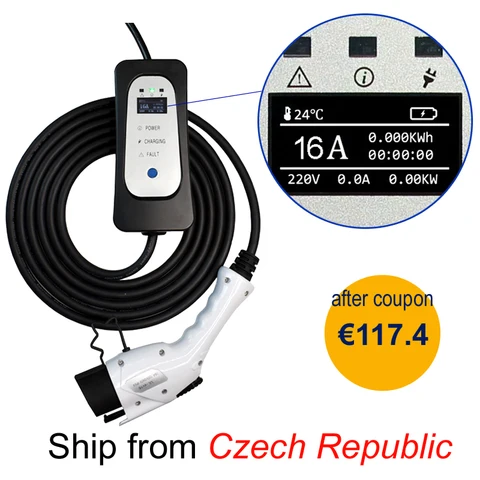

Display: Temperature, Current, Voltage, Charging state, Charing time.
Fast Charging Speeds: 20A charge up to 2X faster than the 10A EV charger.
Which means more time for fun and less time for waiting.
See what our customers say:
2.5X faster than original charger. As below picture showed:
When the ground is dirty or has water, just hang it up.
Keep it clean and tidy.
Technical Specifications:
1.Insulation Resistance:>1000MΩ （DC500V）
2.Contact Resistance:0.5mΩ MAX
3.Wiring Harness Size：3*2.5mm2+2*0.5mm2
4.Housing Fire Rating：UL94V-0. Make charging easy and safer!
(About UL94V-0: After two times 10S burn tests on the sample, the flame was extinguished within 10 seconds. Can't have burning things falling.)
The flame retardant grade of plastic is gradually increased from HB, V-2, V-1 to V-0.
EV charger Control Box Functions:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection (Restart after Self-checking)
4. Lightning protection
5. Over-heat protection(Cooling down to restart)
Electrical Car Charger Quick Guide:
1. Current selection: Long press the button to enter current selection, then short press to select current.
2. Charging time: Plugged it into the vehicle, short press power button to check charging time. If the vehicle did not charge.
3. Over-load protection: It will cut off while working current is over-loaded with lasting 10S. It will restart automatically 3 times after 5 minutes. it won’t restart automatically on 4th time.
4. Over-voltage protection: It will cut off while voltage is over than 275V, It will restart automatically when voltage drops to 265V with lasting 5S.
5. Short-circuit protection: It will cut off while the current is twice more than the rated current.
6. Over-temperature protection: It will cut off while working temperature is over than 85℃. It will restart automatically when temperature drop to 65℃
Motherboard temperature sensor：
Designed to prevent charging cables and controllers from self-ignition because of excessive temperature when charging electric vehicles, avoiding unnecessary economic losses.
7. Lightning protection: It will cut off when lightning stroke or surge current.
Above 7 security guarantees, making charging safter and securer!!!
FAQ:
1. Can I cusomize logo and packing box?
Yes, We support cusomized logo, packing box, cable length, current and so on. Please contact us freely.
2. A few customers ask why it can not charge 20A, but only 10A for my car?
This product max current is 20A, at the same time need your car can support 20A charging, and also make sure the power supply from the AC socket can reach 20A.
3. What is your shipping method?
Deliver by DHL, Fedex, UPS, EMS, about 5-8 days. By China post 30-45 days. Just send us a message if have any requirements.
4. How long is the warranty?
1 year warranty (ship from Spain/ Russia also 1 year warranty) and whole life technical support are for all products. If you have queries about the product, please do not worry, contact us at the first time before open a dispute, we will try out best to find a satisfied solution for you.
5, Is this one suitable for my car?

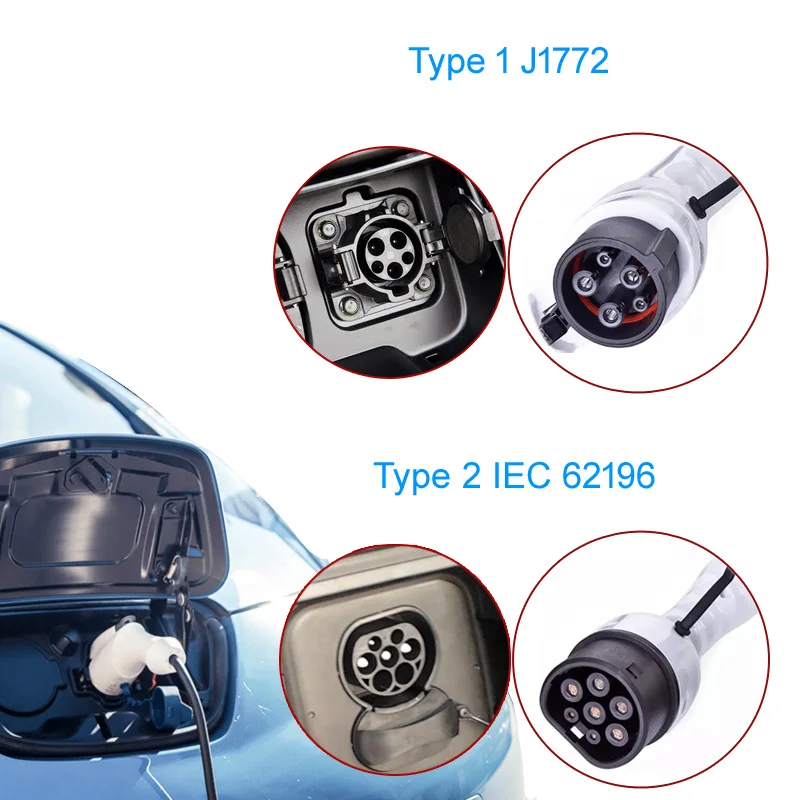

Check your car charging port, type 1 is 5 pins, type 2 is 7 pins as below picture.
Cusomer's feedback:
EV Charger Certifications:
CE, Rohs, TUV, IEC 62196, EMC, Reach test report, ensure high quality. All our products have to pass strict inspections and repeated texts before they leave factory. Please contact us for detailed certificates.
EVSE Chargring Factory Picture:
Quality and Safty in first place
Note:
For package, do not with the black strong box.
Because it is very heavy which will increase the shipping cost.
About US:
We are 6 years experience factory and have three stores. We are experts in understanding how to improve life quality and driving experience with new advanced technology. Good quality products and service is our highest ultimate aim!
